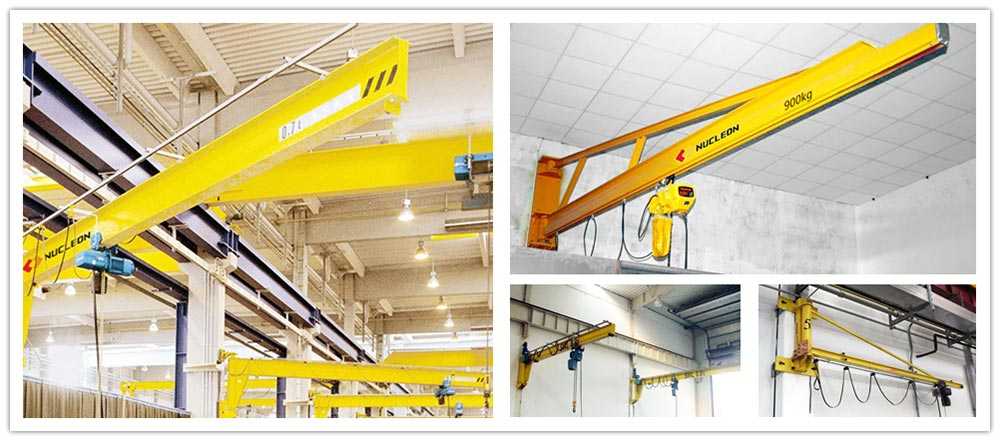

Wall mounted jib crane is composed by frame. rotating devices and electric chain hoist, etc. This jib crane is fixed on wall or concrete pillar, and could rotate as per client requests.
The rotary part could be manual and electric control; Electric hoist is installed on the jib crane arm rail to lift materials; The lifting and traveling system is controled by electric buttons, there has eight buttons which control the fast up, fast down, slow up, slow down, left and right rotary and the horizontal move of electric trolley.
This wall mounted jib crane is a engery saveing and high efficiency material handling equipment, widely applies in plant, workshop production line. assembly line. storehouse. port and other places for lifting materials.
|
Model |
Rated lifting height (t) |
Lifting Height(mm) |
Min. rotation radius(mm) |
Max. rotation radius(mm) |
Overall height(mm) |
|
BXS0.25 |
0.25 |
3,200
|
250 |
3000 |
800 |
|
BXS0.5 |
0.5 |
||||
|
BXD1 |
1 |
3,400 |
300 |
950 |
|
|
BXD2 |
2 |
3,500 |
450 |
3,000 |
1,150 |
|
BXD3 |
3 |
4,500 |
500 |
4,000 |
1,350 |
|
BXD5 |
5 |
4,700 |
550 |
4,000 |
1,500 |
1. New design of structure
2. Easy and simple operation
3. Flexible rotation
4. Light self weight
