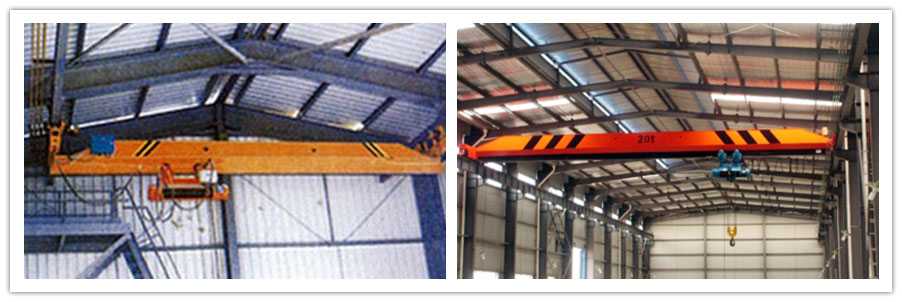

LXB type explosion-proof electric single girder suspension crane is matching for HB-electric hoist,it is a small light lifting, with a reasonable structure, beautiful appearance, explosion-proof performance and so on. The rated weight is 1T-20T, working level is A3, generally depending on the explosion-proof requirements are divided into the gas explosion-proof BT4,CT4 and coal safety explosion-proof type.
|
Lift Capacity |
0.5~10 |
|||
|
Explosion Proof Grade |
ExdII BT4/Exd II CT4 |
|||
|
Working Class |
A3 |
|||
|
Power Source |
380V~415V 50HZ/60HZ 3PH |
|||
|
Crane traveling mechanism |
Traveling speed |
20m/min |
||
|
Motor |
0.5~3t |
3~22.5m |
BZDY12-4/0.4KW*2 |
|
|
5t |
3~16m |
|||
|
5t |
16~22.5m |
BZDY21-4/0.8KW*2 |
||
|
10t |
3~22.5m |
|||
Reasonable design for lower height of warehouse
Favorable performance
Safe and reliable traveling
Low noise,commodious cabin and good view
