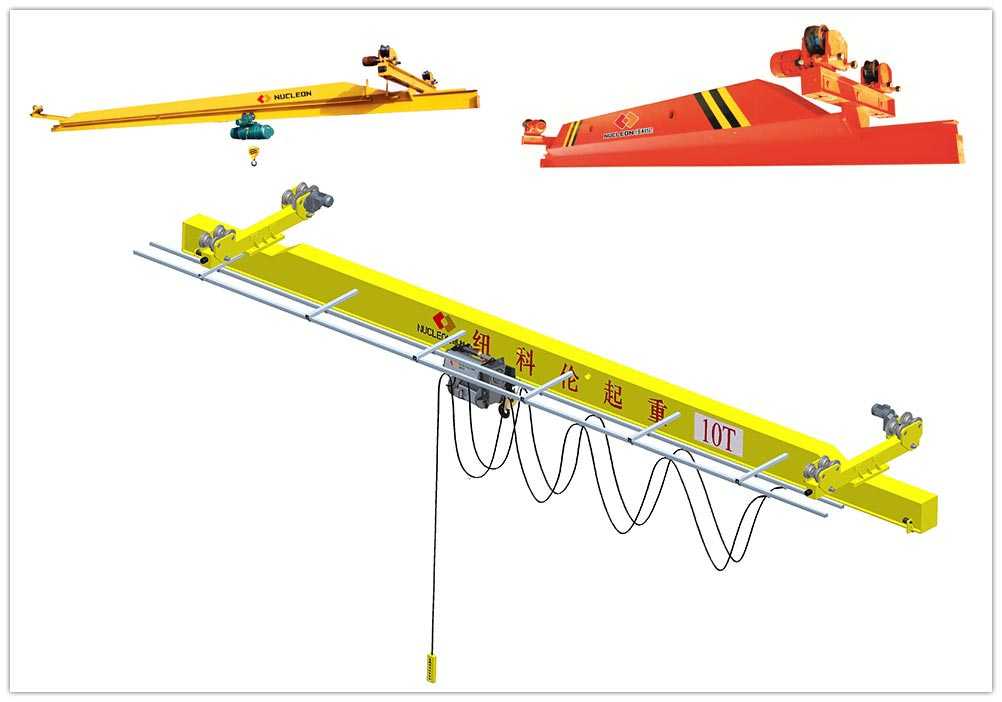

LX model electric single girder suspension crane is designed strictly according to national standard and equipped with C4. MD electric wire rope hoist, thus it is a kind of small light duty crane with rail track. The main part of this suspension crane is main beam, cross beam, electric trolley, electric parts, and lifting system, etc.
Basic capacity is 0.5t~10t, Span 3~16m, working duty is A3~A4, and working temperature is -20 ℃~40℃, while it is forbidden in the environment such as combustible. explosive or corrosive environment, this crane is widely applied in places such as machines workshop, assembling workshop, industrial orel factory, storehouses, and material handling plant.
Control mode
Pendent line with push button or remote control or both
|
Lifting capacity(t) |
0.5 |
1 |
2 |
3 |
5 |
10 |
|||
|
Traveling speed(m/min) |
20 ,30 |
20 ,30 |
20 ,30 |
20 ,30 |
20 ,30 |
20 ,30 |
|||
|
Motor |
type |
ZDY112-4 |
ZDY112-4 |
ZDY112-4 |
ZDY112-4 |
ZDY112-4 |
ZDY112-4 |
||
|
Power(kw) |
0.4×2 |
0.4×2 |
0.4×2 |
0.4×2 |
0.4×2 |
0.8×2 |
|||
|
Electric hoist |
type |
CD1 MD1 wire rope electric hoist |
|||||||
|
Lifting height |
6m, 9m, 12m, 18m |
||||||||
|
Speed(m/min) |
Lift |
8, 8/0.8 |
7, 7/0.7 |
||||||
|
Travel |
20 30 |
||||||||
|
Span(m) |
3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16 |
||||||||
|
Working class |
A3-A5 |
||||||||
|
Wheel diameter(mm) |
130 |
150 |
|||||||
1. Compact structure.
2. Good ragid.
3. Sensitive operation,
4. Low noise.
5. No pollution,
6. Safe and reliable performance
