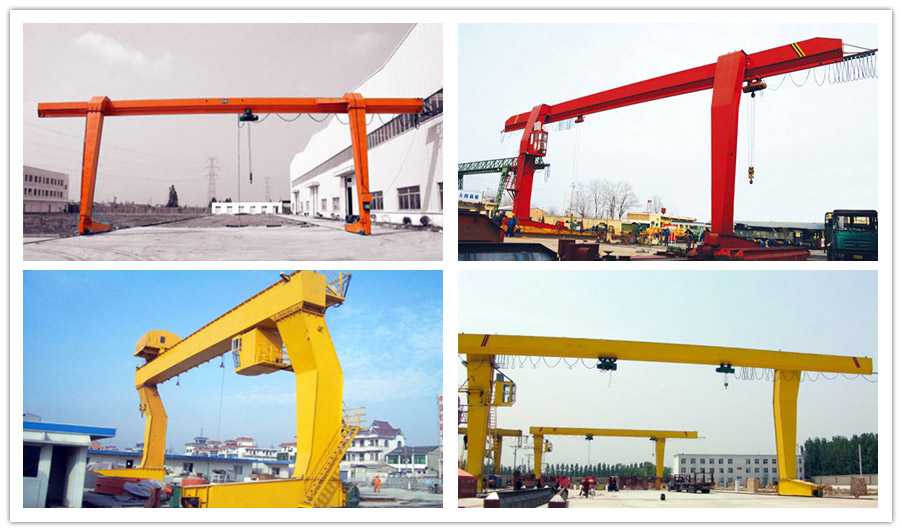

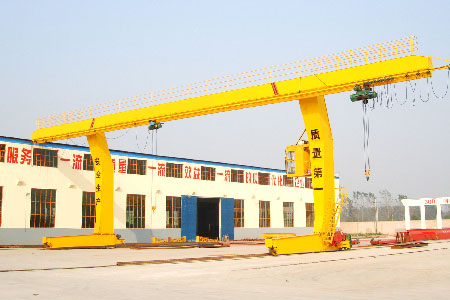

L type single girder gantry crane with hook suitable for open storage, along the railway to loadg and unload equipment and lifting and handling generally. Compared with the MG double girder gantry crane, and when it cross in transporting longer items, without space restrictions, has structural advantages. Additional because of the L-door 's structure characteristic, in the case of lifting height, total height is reduced, saving cost.
Lighter weight and smaller wheel pressure. in our company this product's rated capacity is 5~50T.
|
Capacity |
t |
5 |
10 |
16 |
20 |
32 |
50 |
|
Span |
S(m) |
18m~35m |
|||||
|
Lifting height |
m |
16m~50m |
|||||
|
Lifting speed |
m/min |
11m/min~6m/min |
|||||
|
Trolley speed |
m/min |
36m/min~39m/min |
|||||
|
Crane speed |
m/min |
39m/min~46m/min |
|||||
|
Work duty |
|
A5 |
|||||
|
Track |
|
P43~QU80 |
|||||
Easily controlled and low cost
Do loading, unloading , lifting and transferring work
Light weight,light wheel pressure and reliable performance
Lightning fast delivery
